Choosing an industrial cooling fan is not simply a matter of selecting the highest CFM rating. For an electrical cabinet, telecom base station, UPS system, server enclosure, medical device, or automation controller, the correct DC fan or AC fan must deliver enough airflow at the actual system resistance—while meeting voltage, noise, temperature, lifetime, and reliability requirements.
As a cooling-fan manufacturer and supplier supporting demanding industrial applications, our engineering perspective is straightforward: a fan should be selected according to its real operating point, not its free-air airflow value alone. A well-matched fan protects electronics, reduces thermal failures, and helps manufacturers build more reliable equipment.
This guide explains how to choose an industrial cooling fan step by step, including airflow calculation, static-pressure evaluation, DC versus AC fan selection, environmental protection, and prototype validation.
An industrial cooling fan is an engineered air-moving device designed to remove heat, replace hot air with cooler air, or maintain airflow through equipment and enclosures. Compared with household fans, industrial fans are generally designed for continuous duty, higher temperature ranges, vibration exposure, dust, and defined electrical or mechanical requirements.
In electronics and industrial systems, cooling fans are often used to support:
- Telecom power systems and communication cabinets
- Server racks, data-processing equipment, and storage systems
- UPS units, inverters, and battery-energy-storage systems
- Industrial automation cabinets and PLC enclosures
- EV chargers, power supplies, and converters
- Medical instruments and laboratory equipment
- HVAC controls, vending equipment, and transportation electronics
The fan is only one part of the thermal system. Grilles, filters, heat sinks, narrow vents, ducts, bends, and internal components all restrict airflow. This is why an industrial cooling fan must be evaluated as part of the complete enclosure—not as an isolated component.
Before reviewing a catalog, define what the equipment needs. A precise application brief prevents under-sizing, unnecessary power consumption, and expensive redesigns later in development.
First, identify how much heat the enclosure produces. The heat load commonly includes power losses from processors, power modules, transformers, drives, batteries, LEDs, and other components.
For a preliminary sensible-heat estimate, engineers often use:
In metric terms, a practical approximation is:
Here, Delta T is the acceptable temperature rise between the incoming and outgoing air.
For example, if an enclosure releases 500 W and the acceptable air-temperature rise is 10°C:
Required airflow≈(3.1×500)/10=155 m³/h
This figure is a starting point—not the final fan specification. Add a reasonable design margin, then verify the selected fan can provide the required airflow at the expected static pressure.
Airflow must travel through the enclosure efficiently. A high-performance fan cannot compensate for poor cabinet design.
Review these points before selecting an industrial cooling fan:
- Where will cool air enter the equipment?
- Where will heated air exit?
- Are intake and exhaust openings large enough?
- Will air pass through filters, grilles, or dense heat sinks?
- Are high-heat components located in the airflow path?
- Could exhaust air recirculate back to the intake?
- Is there a risk of bypass airflow around the components that need cooling?

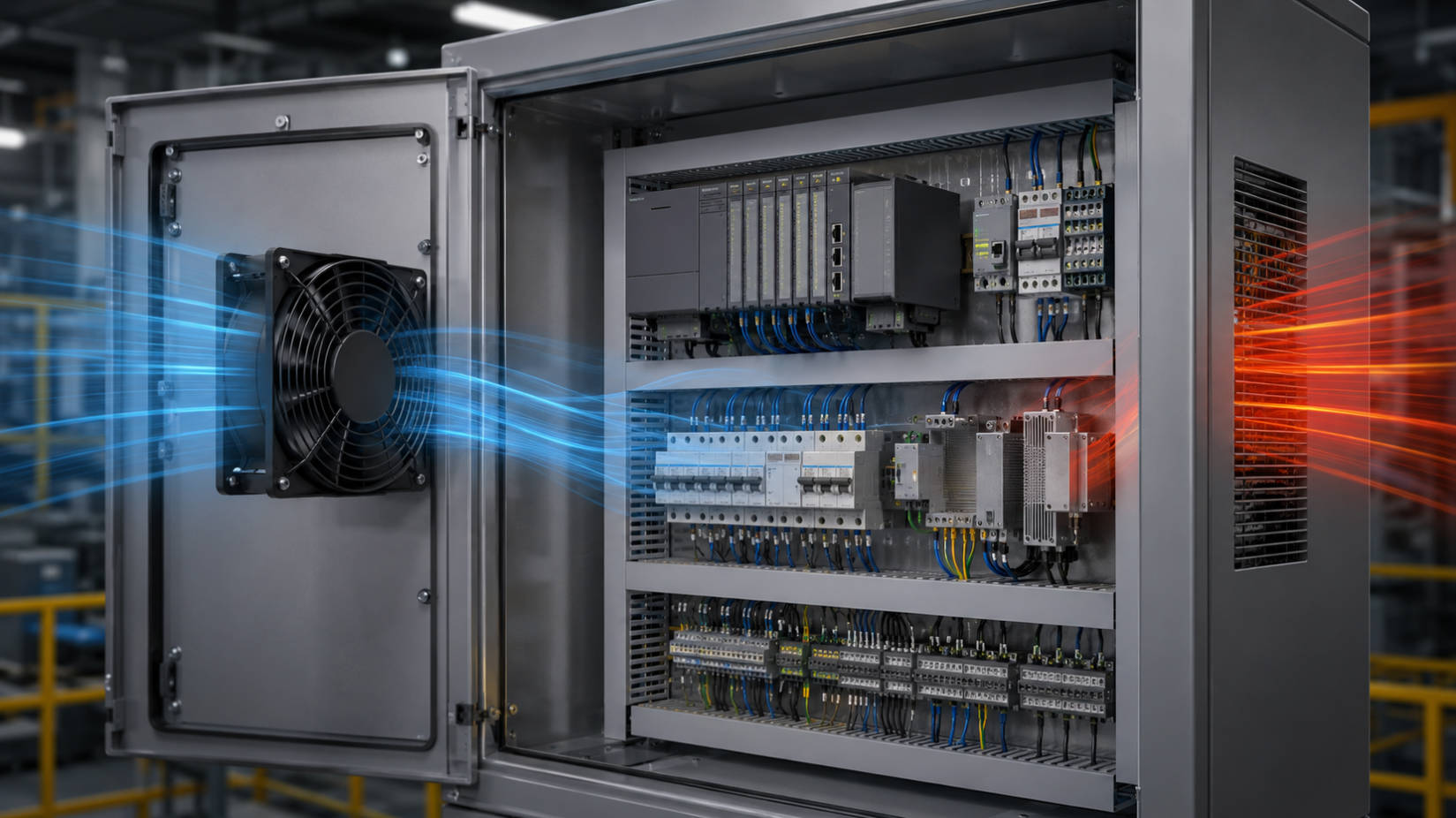

In most cabinet designs, cool air should enter low and leave high because hot air naturally rises. However, the best arrangement still depends on component layout, service access, contamination risk, and enclosure geometry.
The most common fan-selection mistake is comparing only free-air airflow. A fan may be rated at 200 m³/h with no restriction, but it will deliver substantially less air once installed behind a filter, grille, heat sink, or narrow vent.
Airflow is normally expressed in:
- CFM (cubic feet per minute)
- m³/h (cubic meters per hour)
- L/s (liters per second)
High airflow is valuable when air moves through an open space with low resistance. Typical examples include open-frame equipment, rack ventilation, and large cabinet exhaust.
Static pressure is the fan's ability to overcome resistance in the system. It is commonly measured in Pa, mmH₂O, or inches of water gauge.
Higher static pressure becomes essential when the airflow path includes:
- Dense air filters
- Protective finger guards and louvers
- Narrow vents or restricted intake areas
- Long ducts or multiple bends
- Closely spaced circuit boards
- High-fin-density heat sinks
- Acoustic foam or EMI shielding
A fan with a strong free-air rating but weak pressure capability may fail in a restrictive enclosure. Conversely, a high-pressure fan may be unnecessary, louder, and less energy-efficient in an open system.

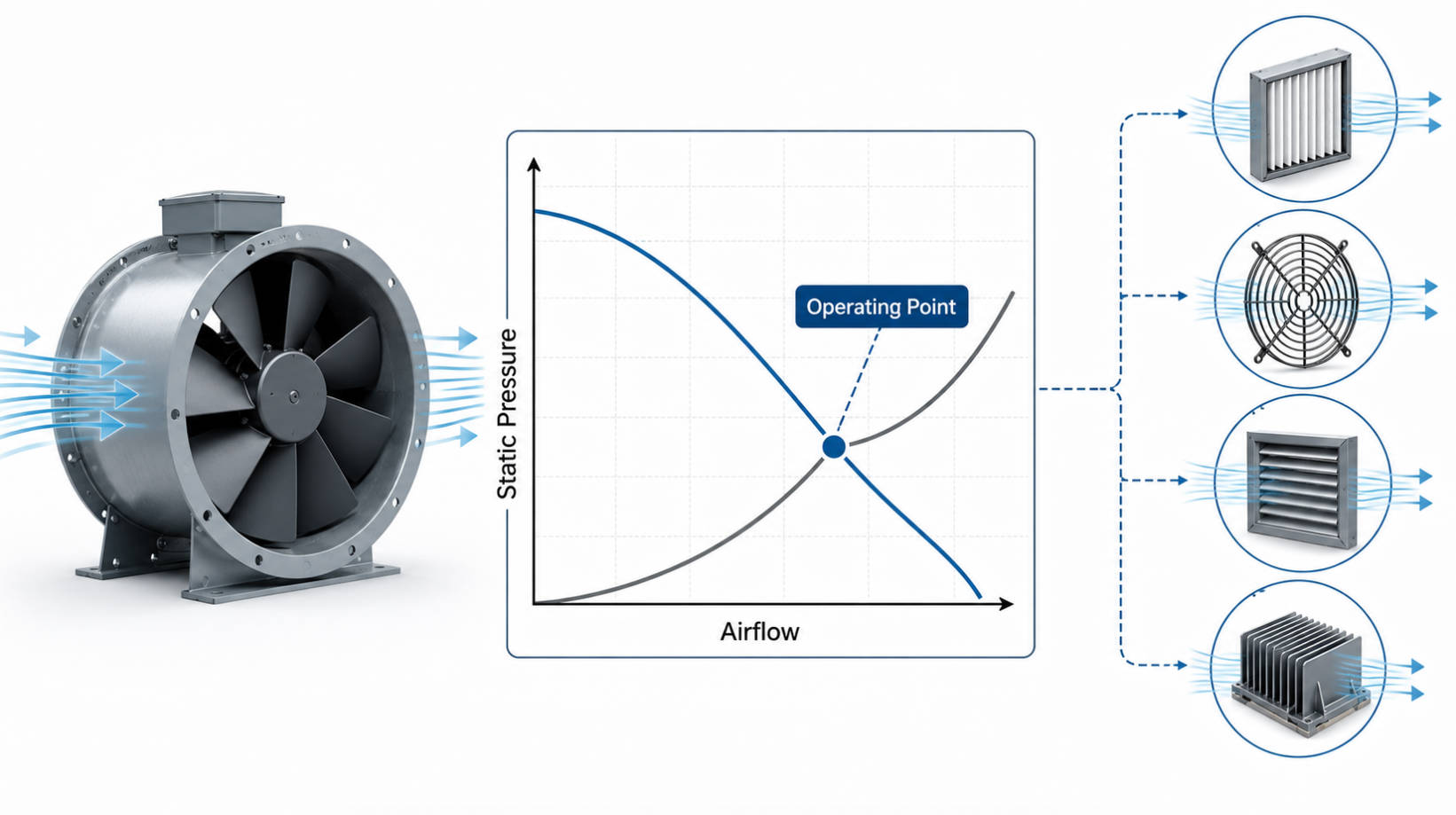

Every fan has a performance curve showing the relationship between airflow and static pressure. Every enclosure also has a system-resistance curve. The intersection of these two curves is the operating point—the airflow your equipment actually receives.
A sound fan-selection process should request:
1. Required airflow at the target operating condition
2. Estimated system static pressure
3. Fan performance curve at the intended voltage
4. Operating temperature and orientation
5. Required acoustic limit
6. Lifetime and reliability expectations
Do not accept "maximum airflow" as a full technical answer. Request the curve and confirm the duty point.
Both DC and AC cooling fans have important industrial roles. The better choice depends on the system power supply, control requirements, product lifetime, and environmental conditions.
| Selection factor | DC fan | AC fan |
|---|---|---|
| Typical power source | 5 V, 12 V, 24 V, 48 V DC | 110 V, 115 V, 220 V, 230 V AC |
| Speed control | Often supports PWM, voltage, or tachometer control | Usually simpler; variable-speed control may require external solutions |
| Monitoring | Tach output, alarm, and locked-rotor signals are commonly available | Monitoring options vary by design |
| Typical applications | Telecom, servers, UPS, chargers, industrial electronics | HVAC equipment, cabinets, appliances, general ventilation |
| Energy optimization | Strong potential through demand-based speed control | Depends on motor and control configuration |
| Integration | Well suited to intelligent electronic systems | Well suited to direct mains-powered equipment |
A DC axial fan is often the preferred option when the equipment has a DC power rail and needs variable-speed control, alarm output, or remote monitoring. In telecom, networking, power electronics, and intelligent cabinets, PWM control can reduce fan speed during lower-load periods, helping to reduce noise and energy use.
DC fans are especially suitable when your design needs:
- 12 V, 24 V, or 48 V power compatibility
- PWM speed control
- Tachometer feedback
- Locked-rotor or fan-failure alarm
- Multiple-fan redundancy
- Lower noise at partial load
An AC cooling fan is often practical for equipment powered directly from AC mains where the application needs stable, straightforward ventilation. It can be a strong option for industrial panels, machinery, HVAC assemblies, and equipment without a dedicated DC power supply.
The key is not to treat DC fans and AC fans as interchangeable. Confirm voltage tolerance, frequency, insulation requirements, wiring method, and safety approvals before final selection.
A cooling fan that performs well in a clean laboratory may fail prematurely in a dusty factory, coastal installation, chemical-processing area, or outdoor telecom cabinet. Environmental evaluation should be part of the initial specification.
Ask these practical questions:
- What is the minimum and maximum ambient temperature?
- Will the fan run continuously or intermittently?
- Is the installation exposed to conductive dust, oil mist, salt spray, or chemicals?
- Is the unit installed indoors, outdoors, or in a semi-protected cabinet?
- Is water spray, washdown, or condensation possible?
- Does the application require an ingress-protection level?
The IP code describes enclosure protection against solids and water. For example, a first digit of 6 indicates dust-tight protection, while the second digit indicates the applicable water-ingress protection level. However, an IP rating does not automatically confirm suitability for every chemical, UV, salt-spray, or high-temperature condition. Confirm the full application environment with the supplier.
Bearing selection affects noise, mounting flexibility, and operating life.
- Sleeve bearings can be cost-effective in cleaner, lower-temperature, and shorter-life applications.
- Ball bearings are generally better suited to continuous operation, higher temperatures, and varied mounting orientations.
- Advanced bearing systems may be appropriate for applications with higher reliability expectations or challenging operating conditions.
Do not evaluate lifetime as a standalone catalog number. Consider ambient temperature, airflow obstruction, vibration, orientation, dust accumulation, and duty cycle. These conditions can significantly affect real service life.
Fan noise is not merely a comfort issue. In medical equipment, office systems, telecom shelters, laboratories, and premium electronics, acoustics can directly influence product acceptance.
Sound level is normally expressed in dB(A), but a single dB(A) number does not tell the whole story. Tonal noise, vibration, mounting method, airflow turbulence, and frequency character all influence perceived noise.
To reduce noise without sacrificing thermal reliability:
- Avoid operating the fan at an unnecessarily high speed
- Use PWM or speed control where system conditions allow
- Select a fan with sufficient pressure margin
- Avoid restrictive stamped grilles when a lower-resistance grille is possible
- Use appropriate mounting hardware to reduce vibration transfer
- Keep intake and exhaust areas clear
- Prevent recirculation of hot exhaust air
A quiet fan that cannot maintain component temperature is not a successful solution. The goal is the lowest practical noise level at the required operating point.
Use this checklist when sending an RFQ or discussing a project with a cooling-fan supplier.
1. Confirm the application and protected components
2. Calculate the estimated heat load in watts
3. Define the maximum permissible enclosure and component temperatures
4. Estimate required airflow and acceptable temperature rise
5. Identify filters, grilles, ducts, heat sinks, and other restrictions
6. Determine target static pressure or request support to estimate it
7. Select DC or AC input voltage and allowable voltage range
8. Specify dimensions, thickness, mounting holes, and airflow direction
9. Define maximum noise requirements
10. Confirm operating temperature, dust, humidity, and corrosion exposure
11. Specify control, tachometer, alarm, or redundancy needs
12. Request drawings, curves, approvals, samples, and test data
This information allows a supplier to recommend a fan based on engineering requirements rather than guesswork.

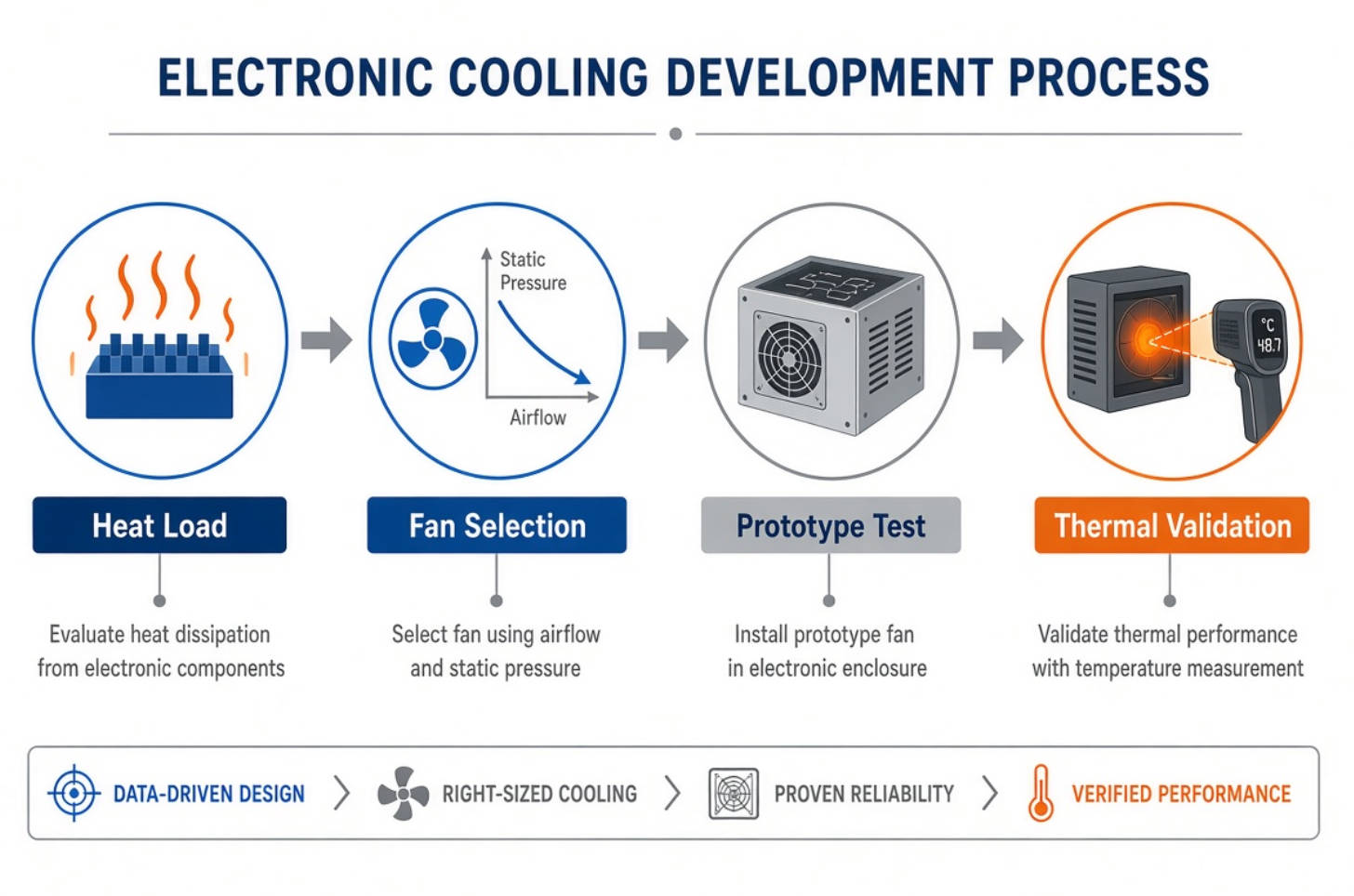

Catalog data is essential, but prototype testing is the final decision point. The installed performance can differ from laboratory performance because of real enclosure restrictions and heat distribution.
During validation, measure:
- Ambient temperature and internal hot-spot temperatures
- Air intake and exhaust temperature difference
- Fan speed and input power
- Acoustic level at the defined measurement distance
- Airflow direction and possible recirculation
- Start-up behavior at minimum voltage
- Alarm, tachometer, and control-signal performance
- Temperature stability under maximum equipment load
For critical systems, test representative samples at high ambient temperature and with realistic dust-filter conditions. If a filter is expected to load over time, evaluate performance with a partially loaded filter rather than a new one only.
The best fan selection is rarely the smallest fan that passes one laboratory test. Electronics operate across seasonal temperature changes, manufacturing tolerances, dust buildup, and component aging.
Build margin into the design, but do so intelligently. Oversizing a fan can increase noise, cost, and power draw. Instead, select a fan that provides adequate airflow and pressure at the realistic operating point, then use control logic where appropriate to balance thermal performance and acoustics.
Early fan involvement can reduce redesign risk. Capital Technology Co., Limited supports industrial cooling requirements with its independent CAPITAL brand and SANYO DENKI fan solutions. For projects involving telecom, power electronics, industrial automation, or mission-critical equipment, the most productive starting point is a complete application brief—not only a part number.
Need help selecting a DC fan, AC fan, blower, or high-static-pressure cooling fan? Send your heat load, enclosure drawing, voltage, temperature range, airflow target, and noise requirement. Our technical team can help evaluate a suitable airflow and pressure solution for your application.
Airflow describes how much air a fan moves. Static pressure describes how well it can push air through resistance such as filters, grilles, ducts, and heat sinks. Both values must be considered together.
Start with the total heat loss in watts and the allowable temperature rise. Use an airflow estimate as an initial sizing tool, then validate the fan against the enclosure's system resistance and test the assembled cabinet.
Choose a DC fan when the design needs DC input, speed control, tachometer feedback, or alarm functions. Choose an AC fan for many direct-mains ventilation applications where simplified integration is appropriate.
Installation adds resistance. Filters, grilles, narrow vents, ducts, heat sinks, and internal obstructions shift the fan's operating point and reduce actual airflow compared with its free-air rating.
No. A higher-CFM fan may be louder, consume more power, and still underperform if it lacks enough static-pressure capability for the system. Select according to the required operating point.
Use a properly sized fan, reduce unnecessary restrictions, improve airflow paths, isolate vibration, and apply speed control when thermal conditions permit. Noise must be balanced with required cooling performance.
Provide the application, heat load, voltage, dimensions, airflow target, estimated static pressure, temperature range, noise limit, environmental conditions, bearing preference, and any control or monitoring requirements.
