When buyers compare EC backward curved vs. forward curved centrifugal fans, the best choice is not simply the fan with the highest airflow rating. It is the fan that delivers the required airflow at the real system resistance, noise target, operating hours, installation space, and lifecycle-cost expectation.
From our experience supporting cooling and ventilation projects at Capital Technology Co., Limited, the decision often comes down to one engineering question: Will the system face meaningful static pressure and changing operating conditions, or does it mainly need large airflow at relatively low resistance? For high-efficiency, pressure-demanding applications such as telecom cabinets, equipment rooms, data-related infrastructure, industrial control systems, and advanced HVAC units, an EC backward curved centrifugal fan is frequently the stronger long-term option. Forward curved centrifugal fans remain valuable where compact packaging, lower initial cost, and quiet low-pressure airflow are the main priorities.
As a manufacturer of DC fans, AC fans, and thermal-management solutions under the CAPITAL brand—and as a leading SANYO DENKI distributor serving customers including ZTE, HUAWEI, and HYTERA—our engineering view is practical: select the fan from the operating point, not from a catalogue headline.
For most demanding commercial and industrial applications, EC backward curved centrifugal fans perform better overall because they typically offer higher efficiency, stronger static-pressure capability, more controllable operation, and a more favorable power characteristic.
However, a forward curved centrifugal fan can still be the better purchase where the system operates at low static pressure, needs a compact blower arrangement, and prioritizes lower noise or lower first cost over peak efficiency.
The most important distinction is this:
- Backward curved fans are generally better for medium-to-high-pressure systems, energy-conscious equipment, variable-speed control, and applications with filters, ducting, heat exchangers, or other airflow restrictions.
- Forward curved fans are often suitable for high-volume, low-pressure air delivery in compact air-handling units, residential equipment, office ventilation, and similar clean-air systems.
- EC motor technology improves controllability and part-load energy performance, but it does not eliminate the aerodynamic differences between backward and forward curved impellers.
| Selection factor | EC Backward Curved Centrifugal Fan | Forward Curved Centrifugal Fan |
|---|---|---|
| Blade direction | Blades curve away from the direction of rotation | Blades curve in the direction of rotation |
| Typical application pressure | Medium to high static pressure | Low to moderate static pressure |
| Typical efficiency potential | Usually higher when properly selected | Usually lower than backward curved designs |
| Airflow behavior | Stable performance through restrictive systems | High airflow capability in lower-resistance systems |
| Power curve | Often non-overloading or self-limiting, depending on design | Can be overloading; motor sizing requires close attention |
| EC speed control | Excellent for demand-based control | Available, but aerodynamic limitations remain |
| Space requirement | Often larger for the same duty point | Frequently compact with scroll housing |
| Noise profile | Can be optimized, but may require acoustic design at high duty | Often quieter at low speeds and low pressure |
| Dust sensitivity | Open impeller can be easier to inspect and clean | Closely spaced blades can collect debris more easily |
| Best-fit sectors | Telecom, industrial electronics, HVAC, cleanrooms, data infrastructure, cabinet cooling | Residential HVAC, fan-coil units, compact AHUs, office and light-commercial ventilation |
The table provides a useful starting point, but it should never replace a fan-curve review. A fan that looks ideal on paper can underperform if the actual system pressure, inlet condition, duct layout, altitude, temperature, or installation geometry differs from the original assumption.

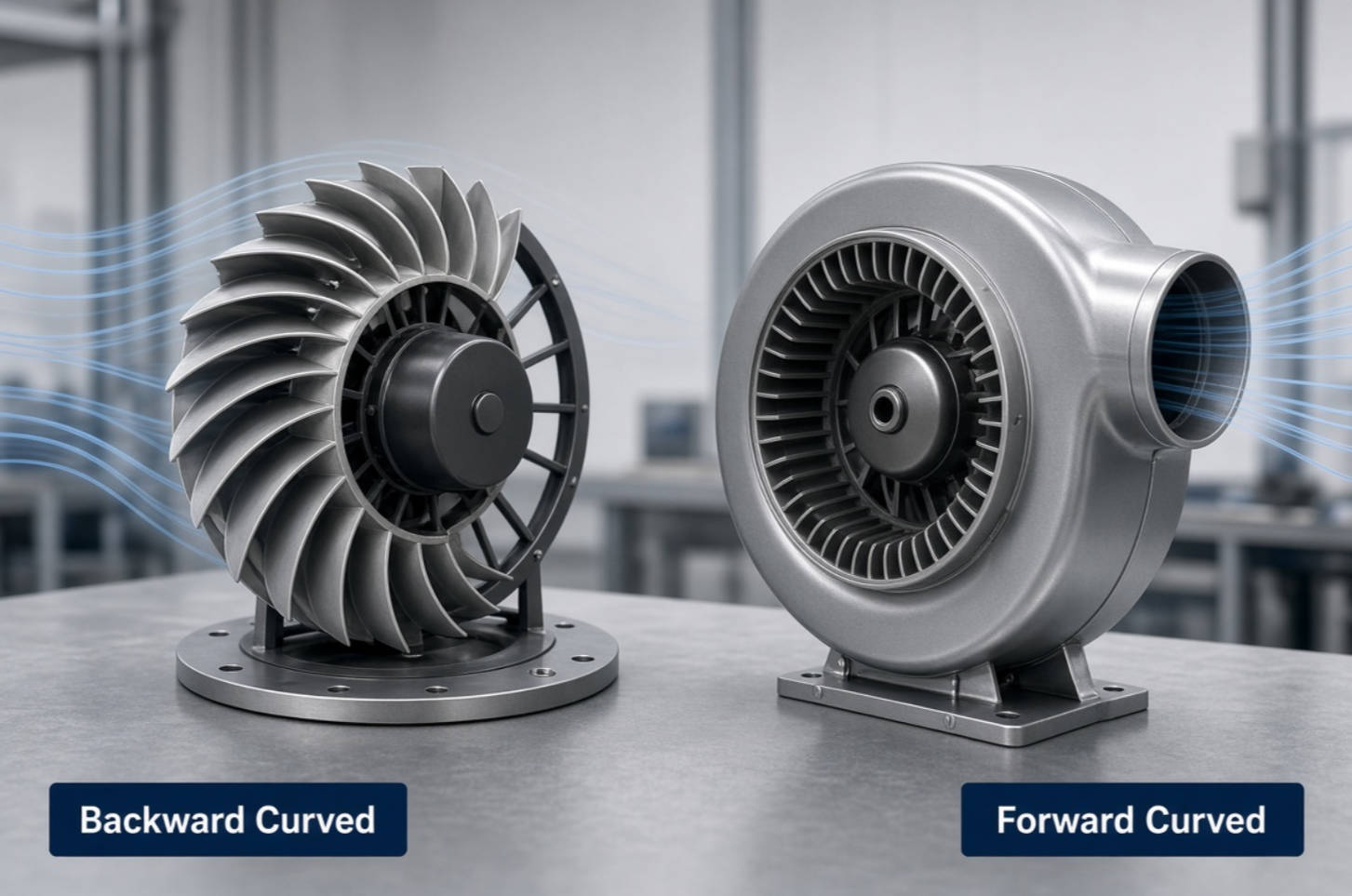

A backward curved centrifugal fan uses blades that curve opposite to the impeller's rotation. This geometry helps guide air outward with relatively low turbulence and is one reason the design is widely used in applications where energy efficiency and static-pressure capability matter.
In practical terms, backward curved fans are usually a better match when airflow must pass through resistance-producing components, including:
- Dense electronics heat sinks
- Intake and exhaust grilles
- Air filters
- Long ducts or narrow internal channels
- Heat exchangers
- Control cabinets with limited air paths
- Acoustic treatment components
- Telecom and network equipment enclosures
A properly selected EC backward curved centrifugal fan can adjust speed according to thermal load or pressure demand. That makes it especially useful in systems that do not need full airflow 24 hours a day.
For example, a telecommunications enclosure may require maximum airflow during high ambient temperature or peak equipment load, yet operate at a lower cooling demand during the evening. With EC speed control, the system can reduce fan speed during lighter-load periods rather than continuously consuming power at a fixed AC-motor speed.
Forward curved centrifugal fans use many short blades that curve in the direction of rotation. They are commonly recognized by the "squirrel-cage" impeller style and are often housed in a scroll or volute.
Their principal advantage is that they can produce useful airflow from a compact assembly, often at relatively low rotational speed. This can be attractive in equipment where installation volume is restricted.
Forward curved fans are commonly selected for:
- Fan-coil units
- Compact air-handling assemblies
- Residential ventilation equipment
- Low-pressure commercial HVAC
- Office ventilation systems
- Small packaged cooling or heating equipment
The limitation is that forward curved designs may lose their advantage as system resistance rises. If filters become loaded, ductwork changes, or a system is upgraded with a denser heat exchanger, the actual duty point can move away from the fan's efficient operating range.
The phrase EC backward curved centrifugal fan combines two efficiency advantages:
1. The backward curved impeller can provide favorable aerodynamic performance.
2. The electronically commutated motor allows precise speed control and can reduce energy waste associated with fixed-speed operation.
Backward curved centrifugal fans often achieve higher static efficiency than forward curved designs when selected near their best efficiency region. The exact value depends on impeller geometry, motor type, housing design, inlet conditions, fan size, speed, and test method. Therefore, buyers should treat any single efficiency percentage as a design-specific figure—not a universal guarantee.

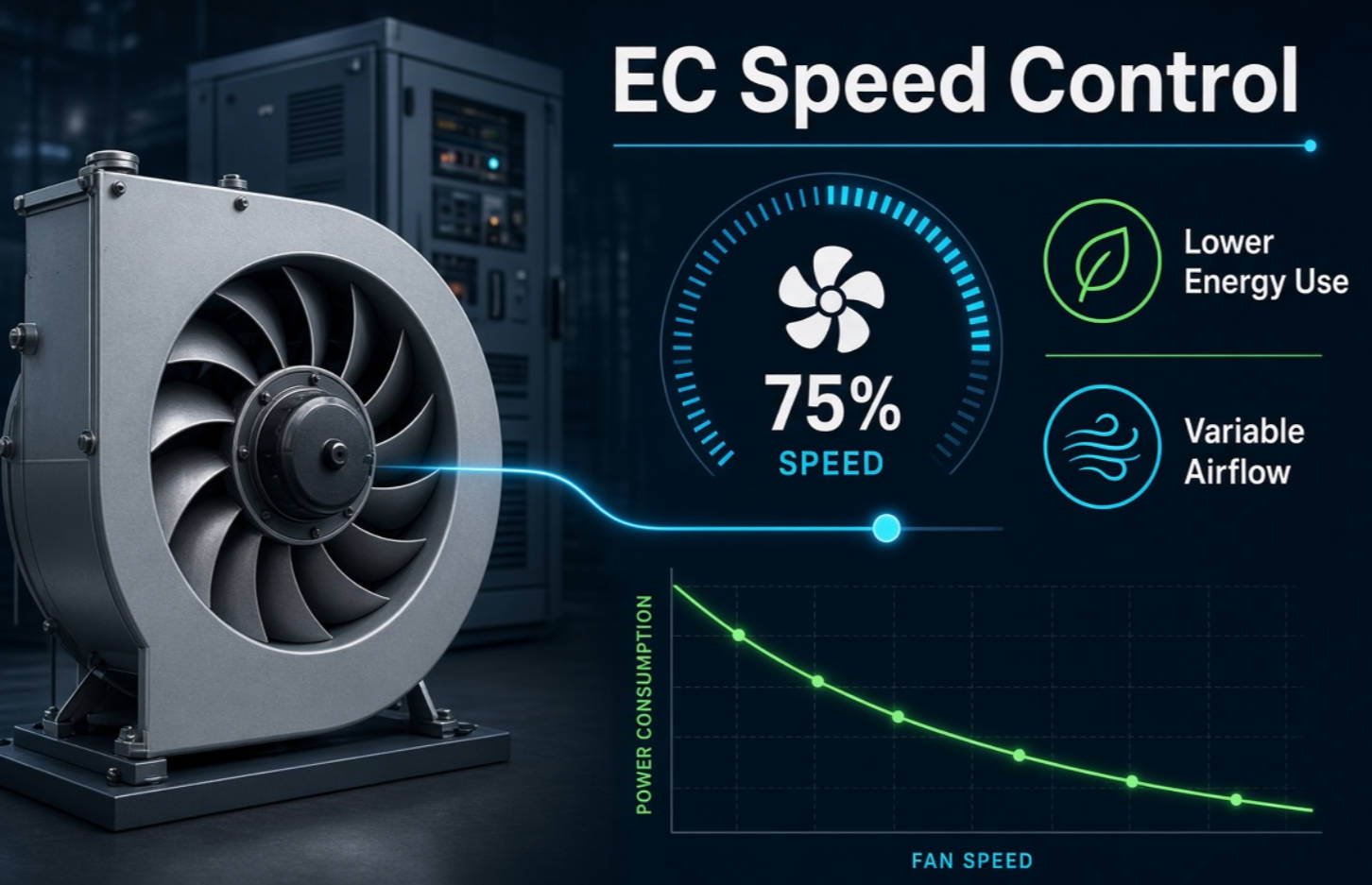

The larger operational advantage can appear at partial load. Fan performance follows the fan laws, meaning small speed reductions can deliver disproportionately large power reductions:
Airflow∝Speed
Pressure∝Speed2
Power∝Speed3
This means that reducing speed by 20% can reduce theoretical fan power much more sharply than airflow. In real equipment, the actual savings depend on the system curve and controls, but the principle is highly relevant for variable-demand cooling systems.
Expert takeaway: Do not compare fans only by rated watts at maximum speed. Compare their expected annual energy use at the real operating profile: full load, normal load, low load, and standby conditions.

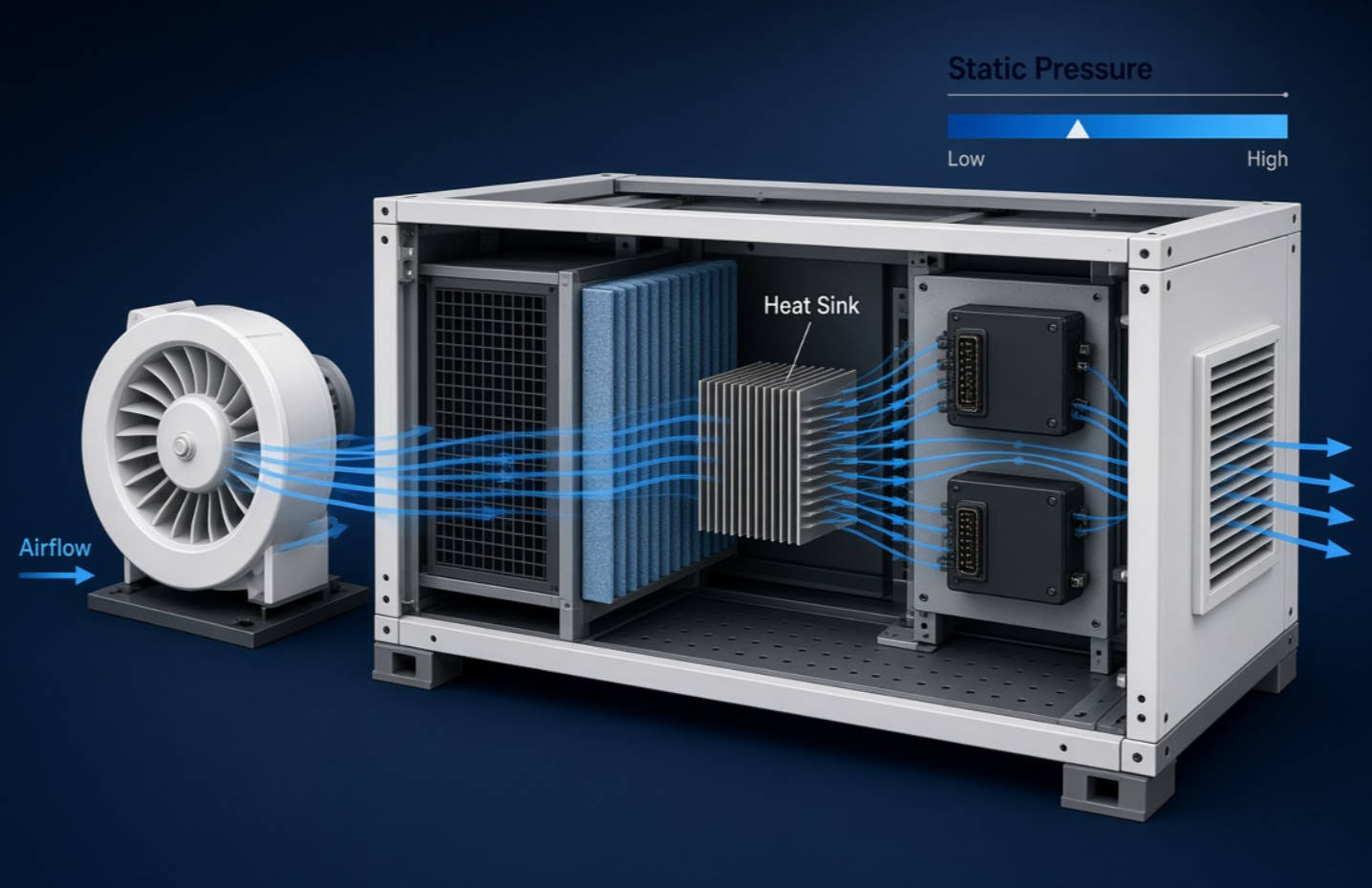

The most common fan-selection mistake is choosing a unit based on free-air airflow. Free-air airflow is measured with little or no external resistance. Real installations rarely operate in free air.
Every installation creates a system curve. As airflow increases, pressure losses from ducts, filters, grilles, bends, heat sinks, louvers, and other components also increase. The point where the fan curve meets the system curve is the actual operating point.
A good selection process should answer these questions:
1. What airflow is required at the equipment's hottest operating condition?
2. What is the total static-pressure requirement at that airflow?
3. How will filters, dust accumulation, or future system modifications affect resistance?
4. Does the selected fan operate near an efficient region of its performance curve?
5. Can the motor safely handle a lower-than-expected system resistance?
6. Is the fan speed-controllable through PWM, voltage, analogue input, Modbus, or another control method?
Backward curved fans are often selected where static pressure is significant because they maintain useful pressure performance across more demanding system curves. Forward curved fans can work well at low pressure but require more caution as resistance rises.
One of the most practical engineering differences between the two designs is the fan's power characteristic.
Many backward curved fan designs have a non-overloading power curve. As airflow increases toward free delivery, absorbed power may reach a maximum and then level off or decrease. This can provide a degree of protection against motor overload when system resistance unexpectedly falls.
Forward curved fans can exhibit an overloading power curve. If resistance drops—for example, a damper opens further than expected, a filter is removed, or duct resistance is lower than the design value—the fan may move more air and draw more power. Without appropriate motor selection and controls, this can create overheating or overload risk.
This does not mean forward curved fans are unsafe. It means they require disciplined engineering. The motor, controller, and operating envelope must be matched to the entire expected fan curve, not only to one design point.
For OEMs and system integrators, this affects:
- Motor sizing
- Controller settings
- Thermal protection strategy
- Production validation
- Field reliability
- Warranty risk
- Maintenance planning
Noise is not determined by blade direction alone. It is influenced by tip speed, airflow velocity, turbulence, housing shape, inlet conditions, vibration isolation, mounting stiffness, duct resonance, and speed-control strategy.
Forward curved fans may produce a favorable acoustic result in low-pressure, low-speed applications. Their compact scroll-housing arrangement can make them attractive for quiet building equipment.
Backward curved fans may produce more aerodynamic noise at high pressure or high speed. However, modern EC control can help reduce average noise by allowing the fan to run only as fast as necessary. A backward curved fan operating at 65% speed during normal conditions may be quieter in daily use than a fixed-speed forward curved fan operating continuously at a higher speed.
- Select the fan near its intended operating point rather than at the far edge of its curve.
- Avoid abrupt inlet transitions and undersized inlet openings.
- Use smooth duct connections and adequate straight inlet length where possible.
- Reduce unnecessary grille resistance.
- Apply vibration isolators or resilient mounting when structure-borne noise is a concern.
- Use EC speed control linked to temperature or pressure feedback.
- Validate the sound level in the complete assembled product, not only in a laboratory fan test.
A forward curved centrifugal fan may have a lower initial equipment cost in certain configurations. Yet acquisition cost is only one part of the decision.
A meaningful lifecycle-cost comparison should include:
- Initial fan and controller cost
- Electricity consumption
- Expected operating hours per year
- Filter loading and changing system pressure
- Service accessibility
- Cleaning frequency
- Replacement intervals
- Failure consequences
- Downtime cost
- Noise-control components
- Compliance and customer energy targets
For a fan running continuously, even a modest efficiency improvement can become meaningful over several years. This is particularly relevant to network infrastructure, charging equipment, automation cabinets, telecom base stations, and other devices with long operating hours.
Assume two fans both meet the required airflow at the initial design condition. Fan A is a forward curved model selected near the upper end of its performance range. Fan B is an EC backward curved model selected near its efficient operating region.
After six months, the system filter becomes partially loaded and static pressure increases. Fan A may experience a more noticeable airflow loss or need higher input power to preserve airflow. Fan B may use its EC control range to maintain the target airflow more efficiently and with better monitoring capability.
The result is not automatically that Fan B wins in every product. But in a high-duty-cycle system, the combination of stable pressure capability, speed control, and lower maintenance risk can change the economics substantially.
Use this six-step method before requesting quotations or approving a fan model.
Specify airflow in CFM or m³/h and static pressure in Pa, mmH₂O, or in. w.g. Do not provide only free-air airflow.
Include filters, heat sinks, grilles, ducts, bends, louvers, dampers, coils, cabinet openings, and outlet restrictions.
Determine whether the system runs continuously, intermittently, or under highly variable thermal loads. Variable loads strongly favor controllable EC solutions.
Check that the intended duty point lies in a stable, efficient operating region. Avoid selecting a fan solely because it can "just reach" the required point.
Confirm voltage, current, input method, alarm output, speed feedback, PWM control, environmental protection level, and electrical safety requirements.
Test the fan in the actual product enclosure. A fan's published laboratory curve is essential, but installed performance can change because of recirculation, inlet blockage, vibration, and acoustics.
- Higher static pressure
- High energy efficiency
- Variable-speed control
- Long operating hours
- Better performance with filters or restrictive airflow paths
- Reduced overload risk
- Industrial-grade cooling reliability
- Smart monitoring or control integration
- Data, telecom, electronics, automation, and equipment-cabinet cooling
- High air volume at low pressure
- Compact blower packaging
- Low-speed, quiet air movement
- Cost-sensitive HVAC designs
- A well-defined clean-air application
- Residential, office, fan-coil, or light-commercial ventilation performance
There is no universal "best" centrifugal fan. There is only the fan that best matches the real duty point and product objective.
At Capital Technology, we recommend beginning with the application rather than the fan type. Our team can help OEMs, distributors, and equipment manufacturers compare DC fan, AC fan, EC fan, and centrifugal fan options against practical requirements such as airflow, pressure, noise, expected service life, voltage, enclosure limitations, and control functionality.
For customers requiring robust cooling solutions, the combination of CAPITAL thermal-management expertise and access to SANYO DENKI cooling-fan solutions supports a more complete selection process—from initial airflow analysis to prototype validation and production supply.
For systems that demand efficiency, static pressure, variable-speed control, and dependable long-term operation, EC backward curved centrifugal fans usually perform better than forward curved centrifugal fans.
Forward curved designs still have a clear role in compact, low-pressure, quieter airflow applications. They are not obsolete; they are simply optimized for a different operating window.
The best procurement decision is based on a complete fan selection review: required airflow, static pressure, fan curve, motor loading, acoustic target, installation space, control method, and lifecycle cost. Selecting the correct fan early can improve thermal performance, lower energy use, reduce field failures, and create a more competitive end product.
Need help selecting the right centrifugal fan for your equipment? Contact Capital Technology Co., Limited with your airflow, static-pressure, voltage, noise, and installation requirements. Our engineering team can recommend a CAPITAL or SANYO DENKI fan solution tailored to your application.
The main difference is the blade direction. Backward curved blades curve away from the direction of rotation, while forward curved blades curve in the direction of rotation. This changes efficiency, pressure capability, motor loading, noise behavior, and the applications each design suits best.
In many properly selected medium- and high-pressure applications, yes. The backward curved impeller can provide favorable aerodynamic efficiency, while the EC motor enables efficient speed control. Actual energy performance still depends on the duty point, system resistance, speed profile, and installation quality.
Telecom and electronics enclosures often contain restrictive airflow paths, filters, heat sinks, grilles, and compact internal layouts. Backward curved centrifugal fans can better handle these higher-static-pressure conditions while supporting precise speed control according to temperature demand.
Yes. EC motor technology can be applied to forward curved fan assemblies. However, EC control does not change the fundamental aerodynamic behavior of a forward curved impeller. The fan must still be selected carefully for its pressure range, power curve, and expected operating conditions.
It depends on the fan size, speed, pressure requirement, housing, airflow path, and installation. Forward curved fans can be quiet in low-pressure applications. A backward curved EC fan can also be very quiet in real-world use when it operates at reduced speed under normal thermal load.
The installed fan may fail to deliver adequate airflow once filters, ducts, grilles, heat exchangers, and other restrictions are introduced. Always compare fan performance at the required static pressure, not only at free-air conditions.
They can offer maintenance advantages in many applications because their impeller configuration is often more accessible and less prone to debris accumulation than closely spaced forward curved blades. Actual maintenance needs depend on air cleanliness, operating temperature, service access, and the surrounding equipment design.
