In industrial ventilation, fan selection is a business decision, not just a technical one. The right backward centrifugal fan can improve energy efficiency, reduce operating noise, stabilize system performance, and lower total cost of ownership across HVAC, cooling, and process air applications.
For manufacturers, distributors, and project buyers, this matters even more. A well-matched fan supports reliable system design, while the wrong choice can increase energy use, create pressure instability, and shorten equipment life.
Backward centrifugal fans are designed with blades that curve away from the direction of rotation. This geometry helps the fan convert kinetic energy into static pressure efficiently, making it well suited for medium- to high-pressure systems and ducted airflow environments.
Compared with many forward-curved designs, backward-curved fans typically deliver stronger performance at higher resistance, better efficiency across the operating range, and a more stable power curve. That non-overloading characteristic is especially valuable in systems where resistance changes during operation.
A backward centrifugal fan uses an impeller with blades angled backward relative to rotation. As air enters the impeller, the fan accelerates it outward, then efficiently converts airflow velocity into pressure before discharge. This makes the design suitable for systems that must push air through filters, ducts, coils, or other restrictive components.
In practical terms, backward centrifugal fans are often chosen when buyers need a balance of efficiency, pressure capability, and acoustic comfort. That is why they appear so often in AHUs, rooftop units, clean industrial ventilation systems, and engineered thermal solutions.
Backward centrifugal fans are not all the same. The main variants below serve different engineering priorities.
| Type | Key Strength | Best Fit |
|---|---|---|
| Backward inclined fan | Durable and efficient | General industrial ventilation |
| Backward curved fan | High efficiency and stable performance | HVAC, air handling, thermal systems |
| Backward airfoil fan | Highest aerodynamic efficiency | Clean air, high-performance systems |
Backward inclined fans are often selected when the buyer needs a robust solution with good efficiency and easier maintenance. Backward airfoil fans can achieve very high efficiency, but they are usually better suited to cleaner air streams because abrasive particles can damage the blade structure.
The strongest selling points of backward centrifugal fans are not just technical—they are commercial.
- Higher efficiency. Backward-curved designs are widely recognized for strong static efficiency at the design point.
- Lower operating cost. Better efficiency usually means lower energy consumption over the fan's lifecycle.
- Stable pressure performance. These fans perform well in systems with resistance and pressure variation.
- Non-overloading power curve. This protects the motor and improves reliability in variable conditions.
- Lower noise potential. Their smoother airflow characteristics can support quieter system operation.
For B2B buyers, these benefits translate into a better total-cost-of-ownership story. That is often more important than the initial purchase price alone.
Backward centrifugal fans are especially effective in applications where pressure resistance is higher and airflow must remain stable. Common use cases include HVAC systems, air handling units, rooftop units, industrial cooling, ventilation and purification systems, dust extraction, clean manufacturing zones, and certain process exhaust systems.
They are a strong fit for the following scenarios:
1. Ducted airflow systems with meaningful resistance.
2. High-static-pressure applications where forward-curved fans may struggle.
3. Energy-sensitive projects where long-term operating cost matters.
4. Systems with variable load, such as VAV or controlled ventilation systems.
If your application requires pressure above moderate levels, a backward-curved fan is often the safer starting point. Technical selection guides consistently point to backward-curved impellers for AHUs, rooftop units, long duct runs, and VFD-controlled systems because they maintain performance more reliably as system conditions change.
In many modern industrial and commercial environments, that flexibility matters more than maximum free-air volume. Buyers are no longer looking for a fan that simply spins; they want a fan that integrates into a complete thermal system with predictable behavior and stable life-cycle economics.

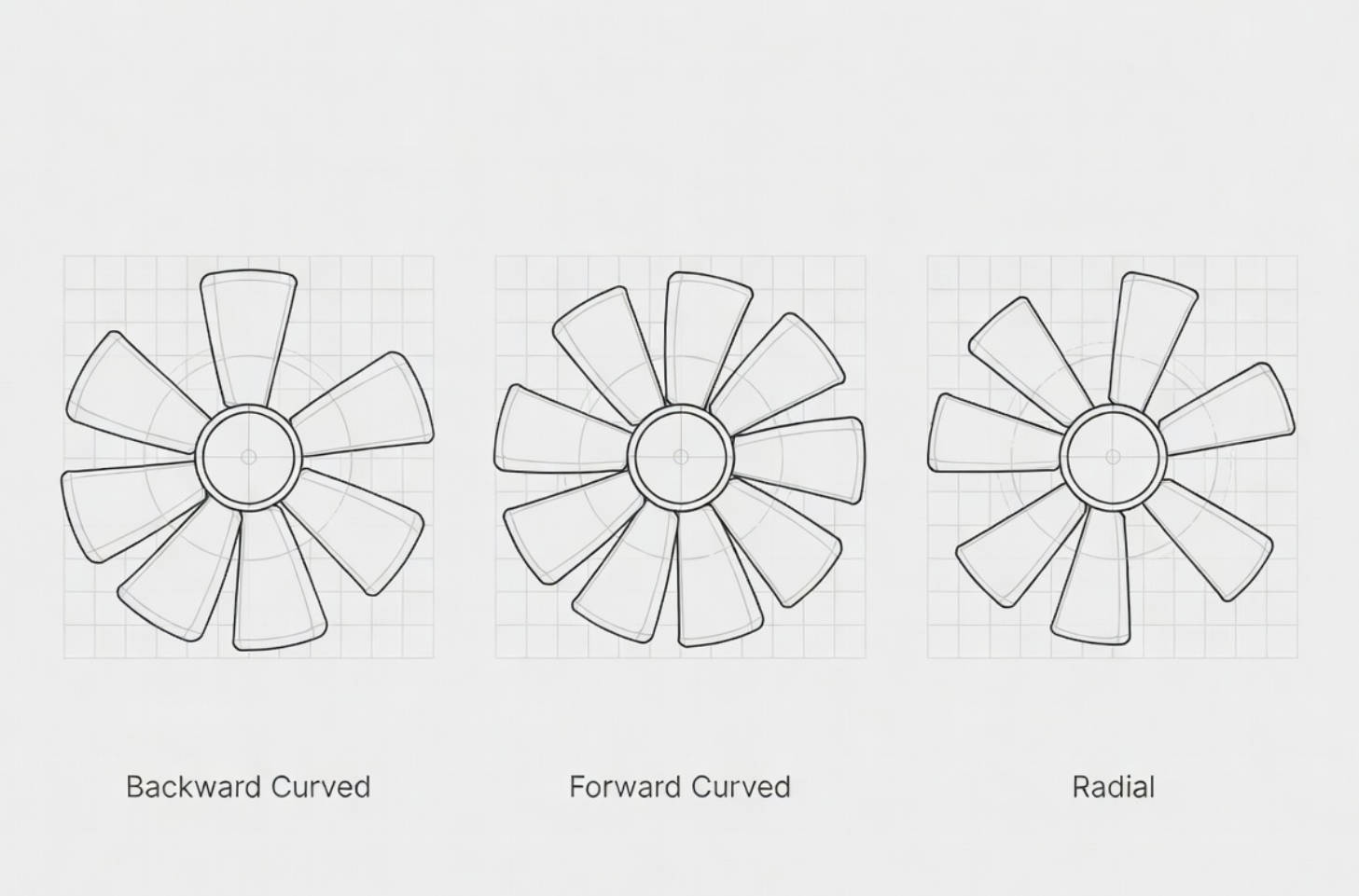

A simple comparison helps clarify the decision.
| Factor | Backward Curved | Forward Curved |
|---|---|---|
| Efficiency | Higher | Lower |
| Noise | Lower potential | Can be louder at certain conditions |
| Pressure handling | Better for higher resistance | Better for low-pressure applications |
| Power behavior | Non-overloading | More sensitive to load changes |
| Typical use | HVAC, industrial airflow, engineered cooling | Compact, low-pressure systems |
Forward-curved fans can still be useful in low-pressure, compact applications, but they are generally not the first choice when efficiency and pressure stability are priorities. Backward-curved fans are usually the more premium option for serious B2B projects.

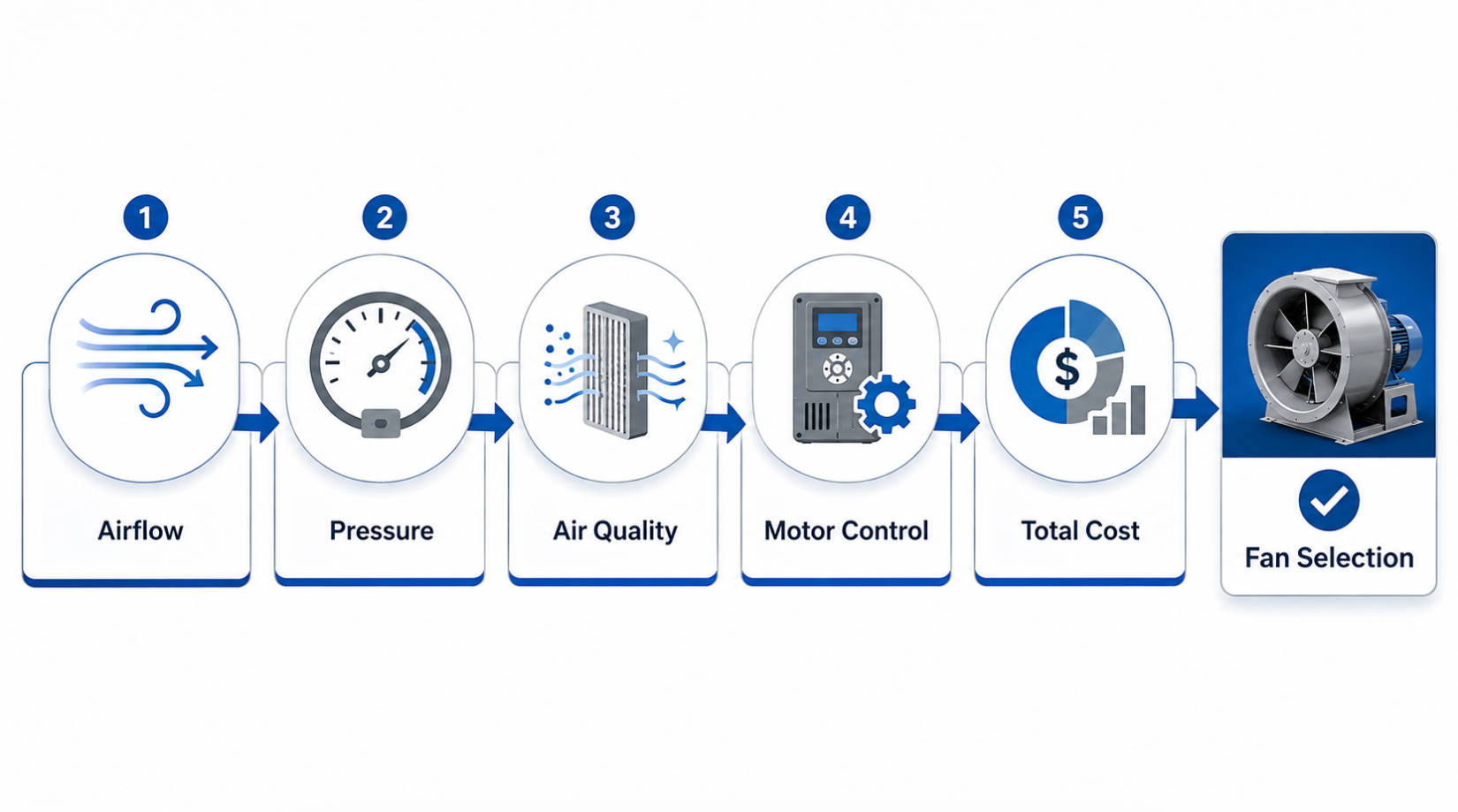

For procurement teams and engineers, selection should go beyond airflow alone. A high-end sourcing decision should consider the full system context.
Start with the design duty point, then confirm the minimum and maximum operating condition. A fan that works at one point may fail to perform well across the real operating range.
If the airstream is clean, backward-curved or airfoil designs are often ideal. If the air contains dust, grease, or particles, choose a blade type that tolerates contamination better and is easier to clean.
For systems using VFD or EC control, backward-curved fans are often favored because they offer strong part-load behavior and stable response under changing resistance.
Do not stop at unit price. Consider energy use, maintenance intervals, replacement risk, noise requirements, and system uptime. In many industrial applications, a more efficient fan pays back through lower operating cost and fewer service problems.

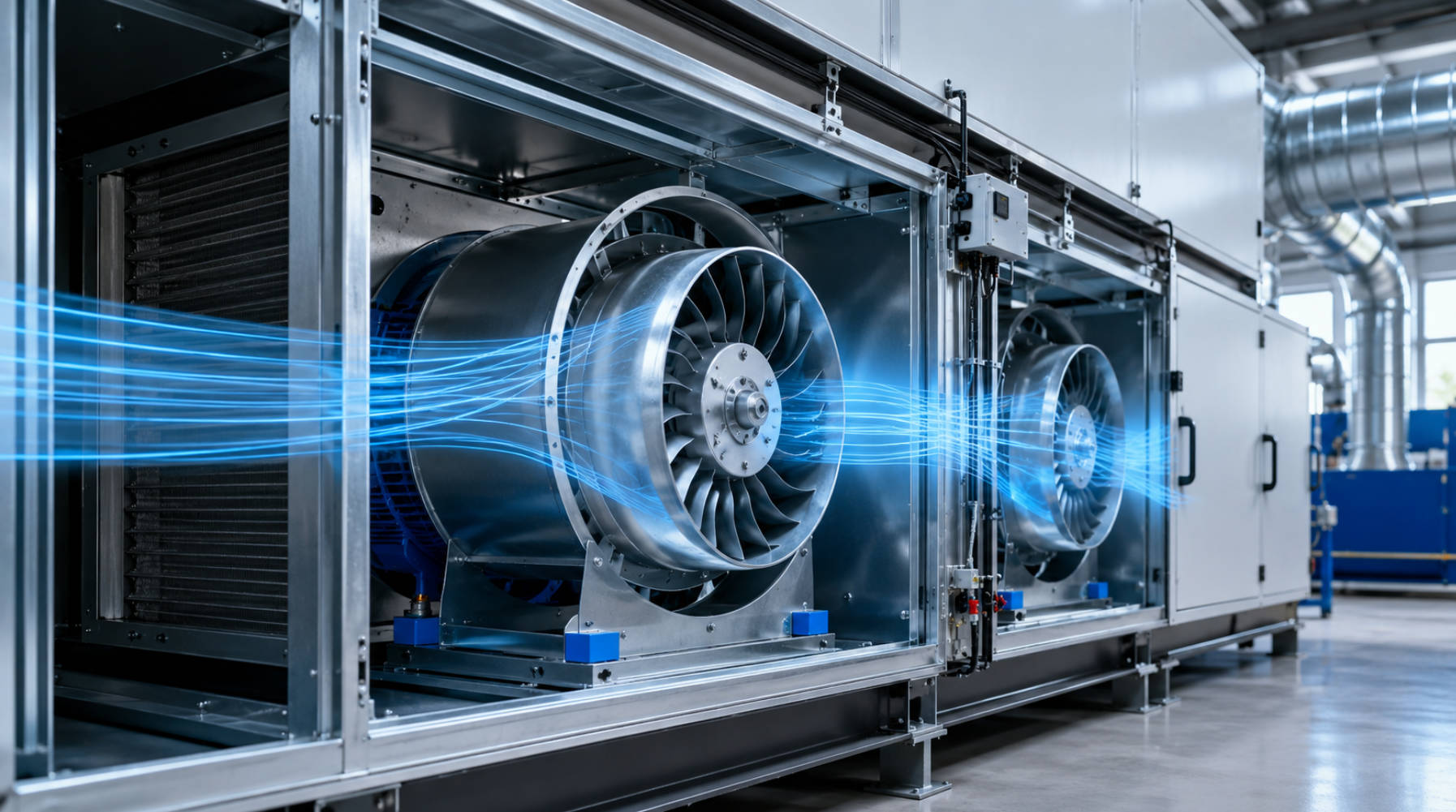

Backward centrifugal fans are widely used across sectors where airflow must be controlled precisely and reliably.
- HVAC and commercial ventilation: air handling units, rooftop units, and building air distribution.
- Industrial cooling: enclosures, machinery, and thermal management systems.
- Clean environments: controlled ventilation where airflow stability is essential.
- Dust extraction and filtration: systems that need pressure capability to pull air through resistance.
- High-demand OEM equipment: integrated thermal solutions for machinery and process systems.
For solution providers like CAPITAL, this creates an opportunity to offer more than a product. It becomes a value proposition around application engineering, sourcing support, and long-term system reliability.
In high-end B2B procurement, the question is rarely "Which fan moves air?" The real question is: Which fan supports the customer's system most efficiently, reliably, and profitably?
That is where backward centrifugal fans stand out. They support better energy performance, improve airflow control in pressure-intensive systems, and create a stronger fit for modern industrial expectations around efficiency, uptime, and sustainability.
For manufacturers and distributors serving HVAC, industrial cooling, or equipment integration markets, positioning backward centrifugal fans as a performance-driven solution can strengthen both technical credibility and commercial conversion.
Backward centrifugal fans are a premium choice for systems that need stable pressure, efficient airflow, and dependable long-term operation. For industrial buyers, OEM engineers, and sourcing teams, they offer a practical balance of performance and commercial value. If your project requires a high-efficiency fan solution for HVAC, industrial cooling, or controlled ventilation, backward centrifugal technology should be one of the first options to evaluate.
If you are looking for a reliable backward centrifugal fan solution, CAPITAL can support your project with product selection, OEM supply, and application-driven airflow recommendations.
A backward centrifugal fan is a fan with blades curved away from the direction of rotation. It is designed to deliver efficient airflow and better performance in higher-pressure systems.
The main advantages are higher efficiency, lower operating noise potential, better pressure handling, and a non-overloading power curve.
They are commonly used in HVAC systems, air handling units, rooftop units, industrial cooling, dust extraction, and ventilation systems with higher resistance.
In most medium- to high-pressure applications, yes. Backward-curved fans generally offer better efficiency and more stable performance than forward-curved fans.
No. Airfoil fans are highly efficient, but they are usually best for clean air environments. In dusty or contaminated air, a more robust blade design may be a better choice.
Start with airflow, static pressure, air quality, control method, and total cost of ownership. The right choice depends on the full system, not just the fan itself.
