Views: 222 Author: Astin Publish Time: 2026-05-02 Origin: Site
Modern electronics face an unrelenting challenge: as devices become faster, smaller, and more powerful, they generate exponentially more heat that must be managed to prevent catastrophic failures. As a thermal solutions provider with direct partnerships with industry leaders like ZTE, HUAWEI, and HYTERA, we've witnessed firsthand how the global thermal management market has surged to $16.84 billion in 2025 and is projected to reach $33.45 billion by 2032—a robust 10.3% compound annual growth rate driven by escalating power densities in modern electronics. [acdcecfan]
Through our two decades of manufacturing radiators, cooling fans, and integrated thermal solutions under our CAPITAL brand and as chief agents for SANYO DENKI, we've learned that passive cooling alone cannot address today's thermal demands. This article synthesizes our practical experience with the latest industry research to provide a comprehensive guide to Active Thermal Control Systems (ATCS).
Active Thermal Control Systems represent any thermal management approach that consumes external energy to move and reject heat, distinguishing them from passive systems that rely solely on natural convection, conduction, and radiation. The critical differentiator is energy input: active systems employ pumps, fans, or thermoelectric coolers powered by electricity to achieve thermal performance impossible through passive means alone. [acdcecfan]
In our experience supplying thermal solutions to telecommunications giants, the decision point between passive and active cooling typically emerges when heat flux exceeds 50 W/cm², a threshold increasingly common in 5G base stations and high-performance computing applications. The industrial thermal management market's expansion to $20.2 billion by 2035 reflects this fundamental shift toward active solutions across manufacturing, data centers, and telecommunications infrastructure. [meticulousresearch]
Every effective ATCS operates on three interconnected principles that create a continuous thermal management cycle:
Heat Acquisition forms the critical first stage, where waste heat is captured at its source—typically the junction of a CPU die, power transistor surface, or laser diode. Through our radiator manufacturing, we've found that conductive interfaces such as cold plates with thermal interface materials offering thermal conductivity above 3 W/mK provide optimal heat transfer from source to cooling system. [acdcecfan]
Heat Transport represents the second phase, moving thermal energy from sensitive components to locations where safe rejection occurs. In liquid-cooled systems we've designed for data center clients, pumped fluids like water-glycol mixtures transport heat with remarkable efficiency due to water's specific heat capacity of 4,184 J/kg·K—roughly 4,000 times greater than air. [acdcecfan]
Heat Rejection completes the cycle by expelling transported heat to ambient environment through radiators, heat exchangers, or fan-cooled fin stacks. Our CAPITAL radiator designs optimize this final stage through increased surface area and airflow management, enabling systems to maintain component temperatures within operational specifications. [acdcecfan]

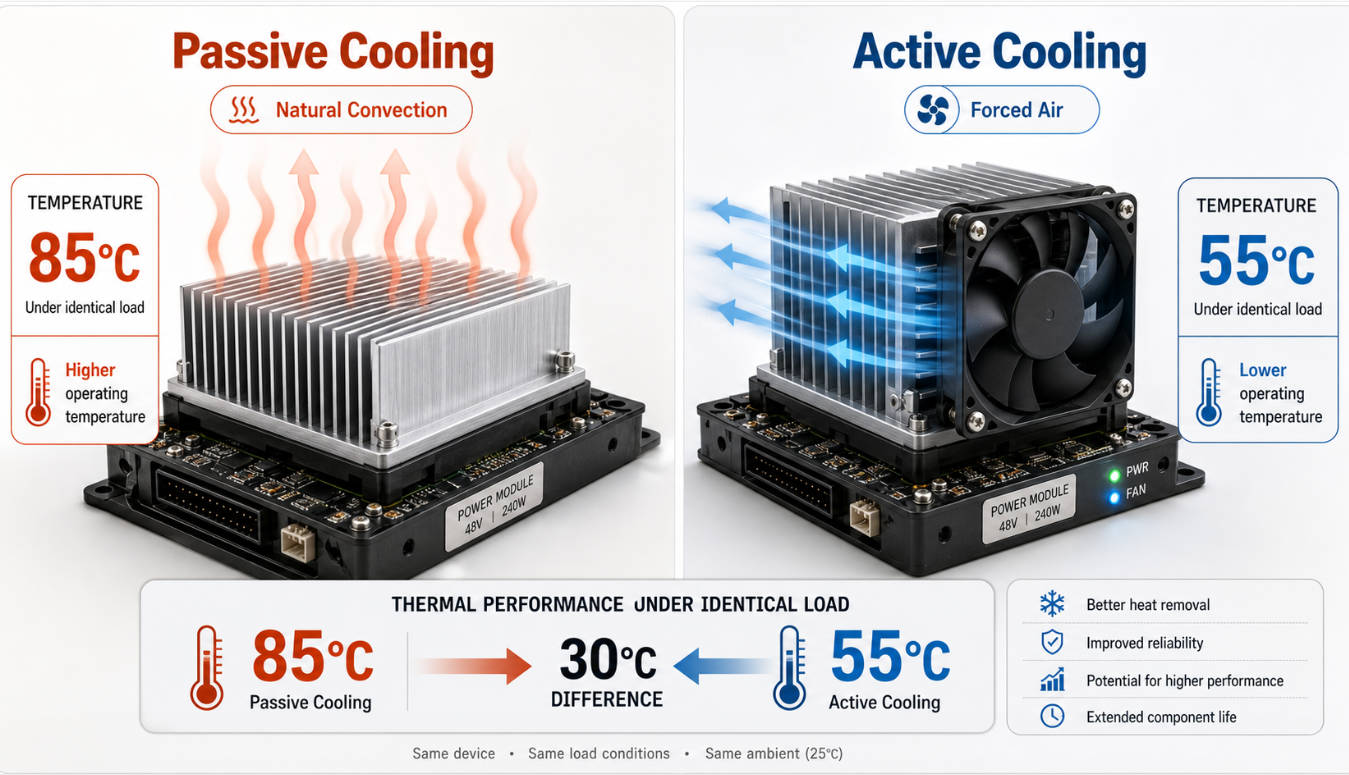

The decision between active and passive thermal management profoundly impacts system cost, reliability, performance, and physical footprint. Based on our manufacturing experience and client applications, here's how these approaches compare:
| Performance Factor | Passive Thermal Control | Active Thermal Control |
|---|---|---|
| Energy Requirements | Zero—uses natural heat transfer mechanisms | Requires power for fans, pumps, or thermoelectric devices acdcecfan |
| Heat Dissipation Capacity | Low to moderate, constrained by ambient temperature and surface area | High to very high, managing extreme heat flux exceeding 100 W/cm² acdcecfan |
| System Complexity | Simple with fewer components (basic heat sinks) | Complex with multiple components, control logic, sensors acdcecfan |
| Reliability (MTBF) | Extremely high with no moving parts | Lower due to mechanical components, though modern fans achieve 180,000-hour life expectancy products.sanyodenki |
| Cost | Low initial investment | Higher capital and operating costs |
| Temperature Control | Passive—temperature floats with load and ambient | Precise targeting of specific setpoints via sensor feedback acdcecfan |
| Acoustic Profile | Silent operation | Generates audible noise from fans or pumps |
| Typical Applications | Smartphone chassis, small amplifiers, SSD spreaders | CPU liquid coolers, data center cooling, industrial enclosures acdcecfan |
Through our partnerships with telecommunications clients, we've observed that passive solutions prove cost-effective and reliable until physics demands active intervention. For instance, when we supplied thermal solutions for a 5G base station installation requiring 24/7/365 operation in ambient temperatures exceeding 45°C, active forced convection became non-negotiable.
Pumped fluid loops represent the pinnacle of heat transport capacity, circulating working fluids through closed-loop systems. In data center applications we've supported, liquid cooling reduced energy consumption by 21% compared to conventional air-based systems, with potential for an additional 15% savings through integrated dedicated outside air systems. [publications.ibpsa]
Strengths: Unmatched thermal capacity enables kilowatt-scale heat transfer across long distances, making PFLs ideal for supercomputers and high-density server racks where our radiator designs facilitate efficient heat rejection to ambient air.
Limitations: System complexity introduces reliability concerns around pump failures and fluid leakage risks, particularly problematic near high-voltage electronics. Implementation costs typically run 3-5 times higher than forced-air alternatives. [acdcecfan]
Thermoelectric coolers (TECs) or Peltier devices create temperature gradients through semiconductor junctions when DC current flows through dissimilar materials. Our experience supplying cooling components for medical laser systems highlights TECs' unique capability: cooling below ambient temperature. [acdcecfan]
Strengths: Solid-state construction with no moving parts, precise temperature regulation through voltage adjustment, and compact form factors make TECs ideal for scientific instruments requiring ±0.1°C stability. [acdcecfan]
Limitations: Poor coefficient of performance (COP) means a TEC moving 10W of heat may consume 50W of power, creating a net 60W thermal burden requiring additional cooling infrastructure. [acdcecfan]
Forced convection—actively moving air across heat sinks using fans or blowers—represents the most prevalent, cost-effective active cooling technology. As SANYO DENKI's chief agent, we've deployed thousands of forced convection solutions delivering 5-10x performance improvements over natural convection at minimal cost increments. [acdcecfan]
Performance Optimization: Modern DC and EC (Electronically Commutated) fans with PWM (Pulse Width Modulation) speed control enable intelligent, demand-based cooling. Our SANYO DENKI long-life fans achieve 180,000-hour service life through optimized bearing structures and temperature-controlled drive circuits. [products.sanyodenki]
Application Versatility: Forced convection scales seamlessly from 40mm fans cooling network switches to 120mm fan arrays managing 5kW server loads. Recent convection optimization research demonstrates that enhanced heat transfer through optimized flow patterns can significantly reduce energy consumption while maintaining thermal performance. [eureka.patsnap]
Variable Conductance Heat Pipes (VCHPs) and Loop Heat Pipes (LHPs) represent sophisticated passive-active hybrids. These systems leverage capillary wicking structures for fluid transport while incorporating controllable elements like heaters to modulate thermal conductivity dynamically. [acdcecfan]
In telecommunications equipment we've supplied, heat pipes coupled with forced convection provide reliable 24/7 operation in outdoor environments subject to rain, dust, and temperature extremes ranging from -40°C to +65°C.
Space applications demonstrate active thermal control's most extreme capabilities. The International Space Station (ISS) operates in Low Earth Orbit where temperatures swing from +120°C in direct sunlight to -150°C in Earth's shadow, with vacuum conditions eliminating convective heat transfer. [acdcecfan]
NASA's ATCS Solution: The ISS employs 6.6 miles of high-pressure ammonia loops, with cold plates acquiring heat from electronics, pumps transporting thermal energy, and massive 75-foot radiators rejecting kilowatts of heat to space through radiation. This foundational system architecture informs terrestrial applications we design for defense contractors requiring extreme reliability. [acdcecfan]
Small satellites face similar challenges in miniaturized packages, where managing thermal loads from sensitive payloads within compact chassis drives design innovation. While passive insulation materials like Kapton provide baseline protection, high-power communication and sensor systems demand active thermal management.

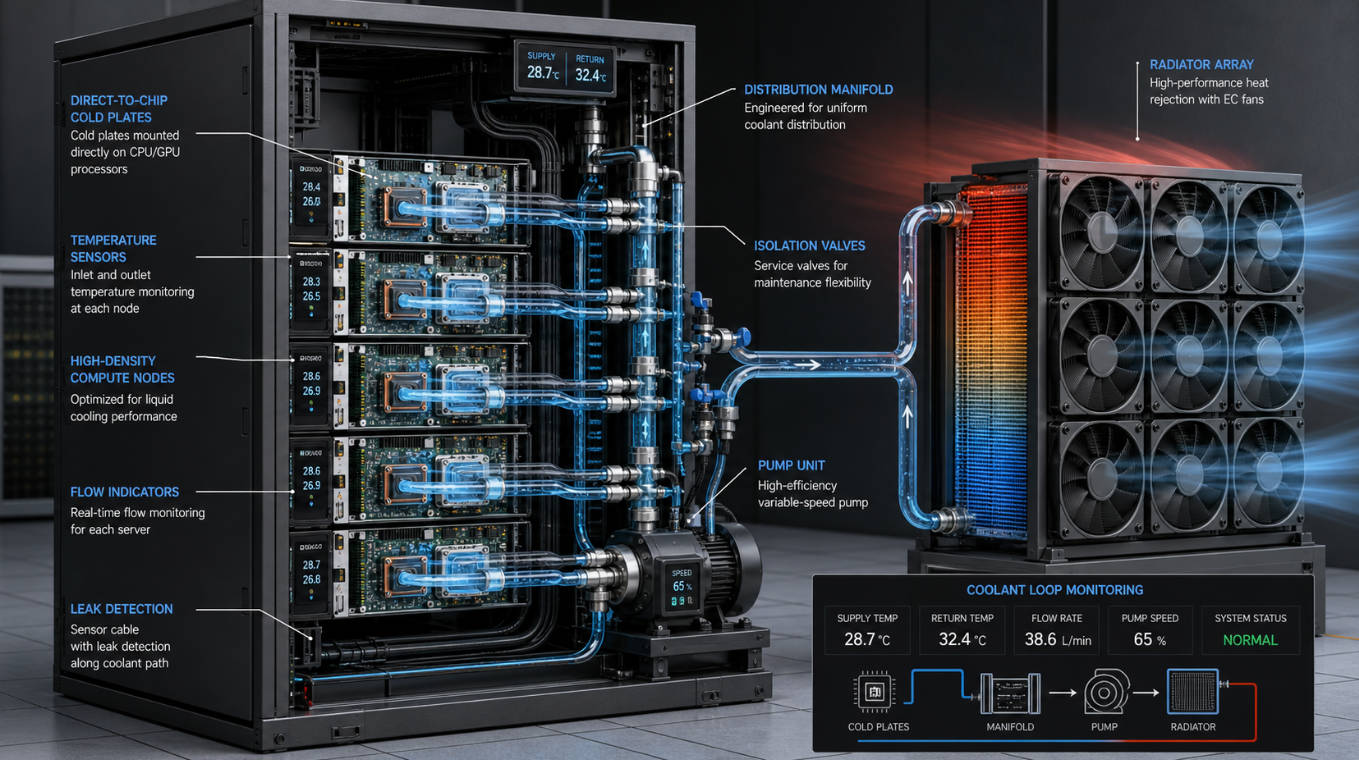

Data centers wage constant thermal warfare as single server racks now exceed 50kW loads, rendering traditional room-based air conditioning inadequate. This reality drove our development of Direct-to-Chip (DTC) liquid cooling solutions integrating our radiator technology with high-efficiency pumps. [acdcecfan]
Industry research confirms forced and natural convection optimization in data centers achieves substantial cost reductions through minimized mechanical cooling reliance, reduced maintenance requirements, and simplified infrastructure. The shift toward green computing aligns with our CAPITAL brand's emphasis on energy-efficient thermal solutions. [eureka.patsnap]
Factory floors present uniquely hostile thermal environments: high ambient temperatures, heavy dust contamination, oil mist, and aggressive humidity. Critical equipment like PLCs (Programmable Logic Controllers), VFDs (Variable Frequency Drives), and renewable energy inverters housed in NEMA or IP-rated enclosures require robust active cooling. [acdcecfan]
Through our work with manufacturing automation clients, we've specified filter-fans and enclosure-mounted air conditioners rated IP68 for dust and waterproof protection, ensuring optimal performance in environments where passive cooling would fail catastrophically within months.

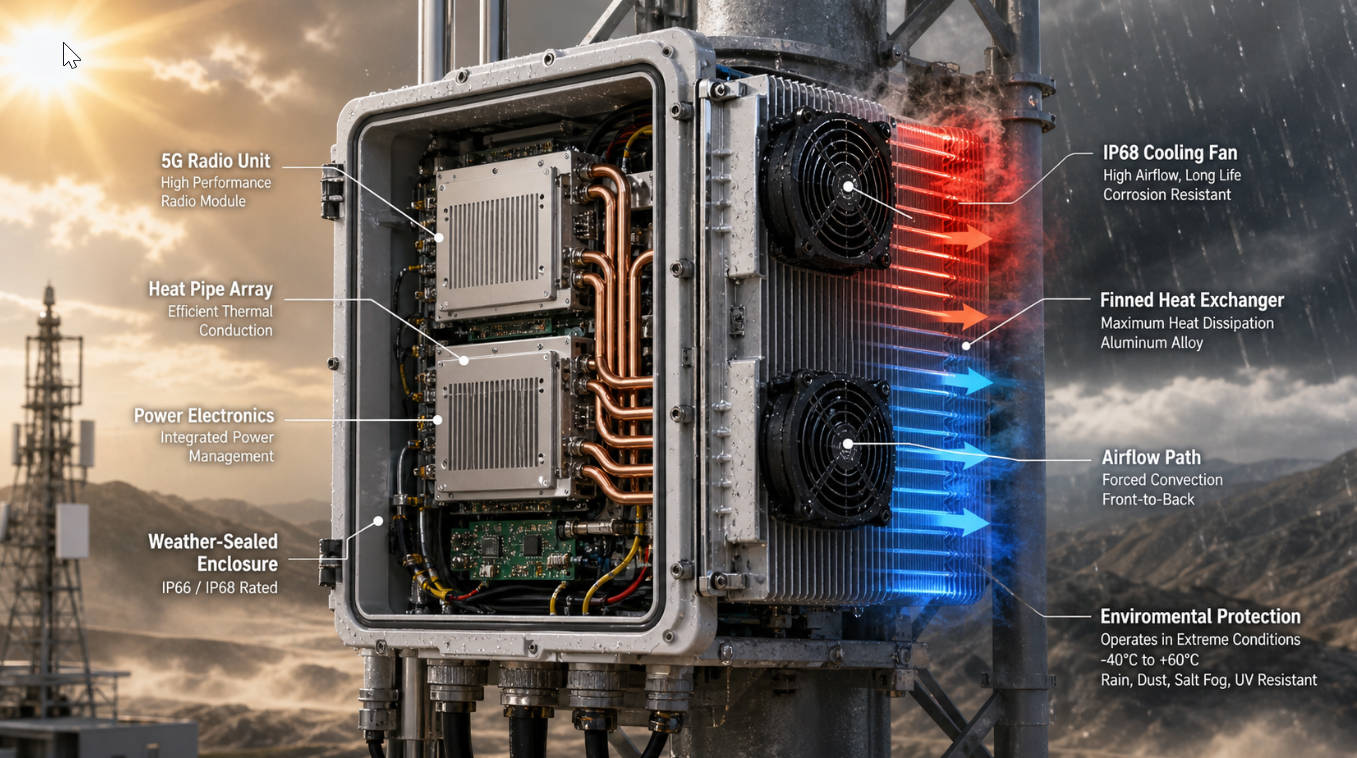

Modern 5G base stations and Remote Radio Units (RRUs) mount outdoors on poles and rooftops, enduring rain, direct sunlight, and extreme temperature cycling while maintaining continuous operation. These installations demand hybrid approaches combining advanced heat pipes with high-reliability forced convection. [acdcecfan]

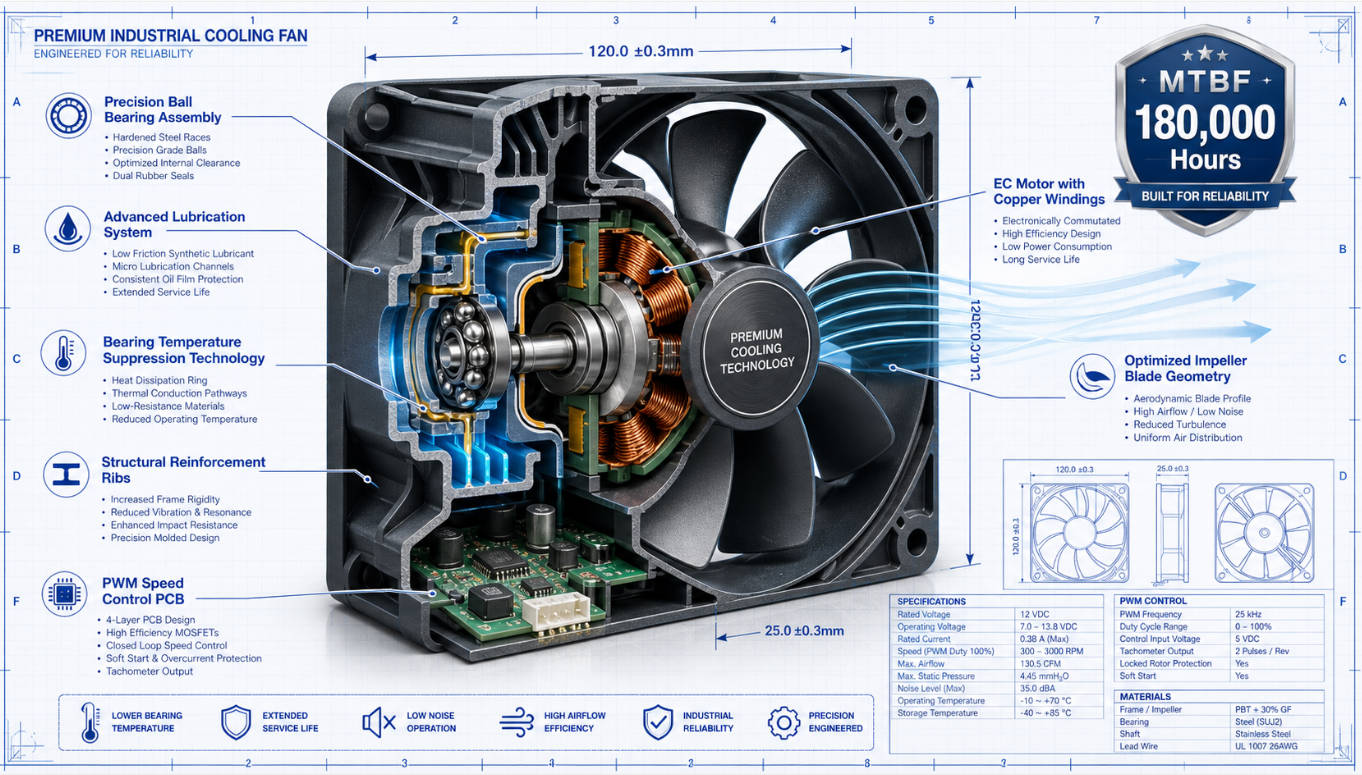

Our SANYO DENKI fan deployments in telecom applications leverage ball-bearing designs achieving Mean Time Between Failure (MTBF) exceeding 70,000 hours, with some long-life models reaching 180,000 hours through optimized bearing temperature management and advanced drive circuitry. This translates to over 20 years of continuous operation at 60°C ambient temperature. [sanyodenki]
Medical imaging equipment, surgical lasers, and patient monitoring systems present dual challenges: stringent thermal stability requirements for precision operation and patient safety considerations prohibiting excessive surface temperatures. [acdcecfan]
For MRI cooling systems we've contributed to, maintaining gradient coil temperatures within ±2°C prevents image artifacts, requiring precision active thermal control with redundant systems ensuring continuous operation during critical procedures.
Electric vehicles represent explosive growth opportunities in thermal management, with battery packs requiring precise temperature control between 20-35°C for optimal performance, longevity, and safety. Power inverters and motor controllers generate concentrated heat loads demanding efficient radiator designs. [boydcorp]
Our radiator engineering for EV applications balances thermal performance with strict weight constraints and cost targets, utilizing advanced materials and optimized fin geometries to maximize heat rejection per kilogram of system mass.
Accurate thermal load calculation forms the foundation of effective ATCS design. Rather than relying on typical TDP (Thermal Design Power) ratings from datasheets, we recommend measuring actual worst-case power consumption under maximum load conditions. [acdcecfan]
Critical Equation: The junction temperature relationship T_junction = T_ambient + (Q × R_θ_j-a) reveals that reducing junction-to-ambient thermal resistance (R_θ_j-a) through effective ATCS implementation directly lowers component operating temperature. Our design objective targets R_θ_j-a values ensuring junction temperatures remain 20-30°C below maximum ratings, providing safety margin for ambient temperature variations. [acdcecfan]
Ambient temperature—the single most critical design variable—rarely equals comfortable room temperature in industrial applications. Internal enclosure ambient temperatures frequently exceed external by 15-25°C due to heat accumulation from multiple components. [acdcecfan]
Environmental Factor Checklist:
1. Temperature Range: Systems must operate across specified ambient ranges, with industrial applications often requiring -40°C to +70°C capability
2. Dust and Particulate: Factory environments demand IP-rated protection; we've successfully deployed IP68-rated fans in cement manufacturing facilities
3. Humidity and Corrosion: Coastal installations require corrosion-resistant materials and conformal coatings
4. Altitude: Reduced air density at elevation decreases convective cooling effectiveness, requiring airflow compensation
Every ATCS design navigates competing constraints of Size, Weight, Power consumption, and Cost. Through hundreds of client projects, we've learned that optimal solutions satisfy thermal requirements with appropriate safety margins at minimum SWaP-C investment. [acdcecfan]
Power Consumption: ATCS components represent parasitic loads consuming system energy. Our PWM-controlled fans reduce average power draw 40-60% compared to fixed-speed operation by ramping speed dynamically with thermal load.
Size and Weight: Pumped liquid loops add significant mass and require space for pumps, reservoirs, and radiators. Forced-air solutions minimize weight penalties while demanding clear airflow paths through enclosures.
The fundamental design rule: specify the simplest ATCS satisfying thermal requirements with 15-20% margin, avoiding over-engineering that inflates costs without proportional reliability or performance benefits.
While exotic technologies like ISS ammonia loops and precision thermoelectric coolers capture imagination, most industrial, medical, and telecommunications applications achieve optimal results through intelligently designed forced convection systems. [acdcecfan]
Cost-Performance Leadership: No alternative technology delivers comparable cooling enhancement per dollar invested. A quality 120mm fan costing $15-30 can provide 100+ CFM airflow, transforming a marginally adequate passive heat sink into a high-performance cooling solution.
Scalability Across Applications: Forced convection adapts seamlessly from miniature 25mm fans cooling IoT devices to industrial 172mm fans managing kilowatts in UPS systems and motor drives. [acdcecfan]
Proven Reliability: Modern fan technology eliminates historical failure concerns through advanced bearing systems, optimized lubricants, and robust motor designs. SANYO DENKI's long-life fans demonstrate this evolution, achieving 180,000-hour L10 life through structural improvements suppressing bearing temperature rise. [products.sanyodenki]
Intelligent Control Integration: EC fans with PWM speed control integrate into sophisticated ATCS architectures, enabling demand-based cooling that operates silently at low loads while ramping instantaneously when thermal conditions require full capacity. [acdcecfan]
As a source manufacturer specializing in radiators, fans, and integrated thermal systems for over 20 years, we've developed deep expertise addressing real-world industrial thermal challenges:
Reliability Engineering: Our partnerships with ZTE, HUAWEI, and HYTERA demand uncompromising reliability. We manufacture fans with precision ball bearings achieving MTBF exceeding 70,000 hours, backed by SANYO DENKI's industry-leading 180,000-hour long-life technology. [products.sanyodenki]
Environmental Ruggedness: Standard office-environment components fail rapidly in industrial settings. Our IP68-rated fans withstand water submersion and complete dust exclusion, proven in harsh factory, outdoor telecom, and marine applications.
Intelligent Thermal Management: PWM smart speed control transforms fans from simple airflow devices into responsive ATCS components, delivering quiet, energy-efficient operation at light loads with instant full-power capability when temperatures rise.
Customization and Rapid Deployment: We collaborate with engineering teams to design application-specific thermal solutions, with custom configurations available within 10 days for prototype validation and pre-production testing.
Our comprehensive product portfolio under the CAPITAL brand and SANYO DENKI partnership ensures access to thermal solutions spanning 25mm to 172mm fan sizes, AC and DC power options, and specialized variants including explosion-proof, high-temperature, and ultra-quiet models.
The thermal management industry's projected growth from $16.84 billion in 2025 to $33.45 billion by 2032 reflects intensifying thermal challenges across multiple sectors. Several emerging trends shape ATCS evolution: [coherentmi]
Hybrid Cooling Architectures: Combining liquid cooling for concentrated hot spots with forced-air ambient cooling optimizes cost-performance, a strategy we're implementing in next-generation server and telecommunications designs.
AI-Driven Thermal Management: Machine learning algorithms predict thermal loads based on workload patterns, enabling proactive cooling adjustments that minimize energy consumption while maintaining temperature safety margins.
Advanced Materials Integration: Phase-change materials, graphene thermal interfaces, and diamond heat spreaders enhance passive thermal pathways, reducing active cooling demands and extending component life.
Sustainability Focus: Environmental regulations and corporate sustainability commitments drive demand for energy-efficient thermal solutions, aligning with our CAPITAL brand's emphasis on optimized, low-power cooling technologies.
Active thermal control systems consume external energy to power components like fans, pumps, or thermoelectric coolers that actively move and reject heat, while passive systems rely solely on natural convection, conduction, and radiation without energy input. Active systems achieve far higher heat dissipation capacity—often 5-10x greater than passive approaches—enabling them to manage extreme heat flux exceeding 100 W/cm² common in modern high-performance electronics. [acdcecfan]
Begin by identifying all heat-generating components and determining their maximum power consumption under worst-case operating conditions rather than relying on typical TDP ratings. Sum these individual heat loads to establish total system thermal burden (Q), then use the relationship T_junction = T_ambient + (Q × R_θ_j-a) to calculate required thermal resistance. Your ATCS design must reduce R_θ_j-a sufficiently to maintain junction temperatures below maximum ratings with 15-20% safety margin across the full ambient temperature range. [acdcecfan]
Forced convection using high-quality fans provides optimal reliability for most industrial applications due to simple architecture with a single moving component, proven bearing technologies, and extensive operational history. Modern ball-bearing fans achieve MTBF exceeding 70,000 hours, with advanced designs like SANYO DENKI's long-life series reaching 180,000-hour service life through optimized bearing temperature management. This translates to over 20 years of continuous 24/7 operation at elevated ambient temperatures, surpassing most pumped fluid loop and thermoelectric cooler reliability metrics. [products.sanyodenki]
Thermoelectric coolers (TECs) represent the only common active thermal technology capable of cooling below ambient temperature through the Peltier effect, which creates a temperature gradient when DC current flows through semiconductor junctions. However, TECs exhibit poor efficiency with coefficient of performance (COP) typically 0.2-0.5, meaning they consume 2-5 watts of electrical power for every watt of cooling provided. This generates substantial waste heat on the hot side requiring additional cooling infrastructure, limiting TECs to specialized applications like laser temperature stabilization and precision scientific instruments. [acdcecfan]
Reduced atmospheric pressure at altitude decreases air density, directly diminishing convective heat transfer effectiveness. At 3,000 meters elevation, air density drops approximately 30% compared to sea level, requiring proportional airflow increases to maintain equivalent cooling performance. For high-altitude installations, specify fans with higher CFM ratings or increased speed capability, and verify that heat sink designs account for reduced convective coefficients. Alternatively, consider transitioning to liquid cooling systems whose performance remains largely altitude-independent. [acdcecfan]
1. ACDCFAN. (2025). Active Thermal Control: Principles & Applications. [Link]
2. Coherent Market Insights. (2025). Thermal Management Market Size, Trends Forecast, 2025-2032. [Link]
3. Meticulous Research. (2024). Industrial Thermal Management Market. [Link]
4. SANYO DENKI. (2025). Long Life Fan | San Ace Product Site. [Link]
5. SANYO DENKI America. (n.d.). Understanding Fan Life. [Link]
6. Digital Applied. (2026). E-E-A-T in March 2026: Google Experience Content Guide. [Link]
7. Keywords Everywhere. (2026). Google E-E-A-T Guidelines: an Overview (2026 Playbook). [Link]
8. IBPSA Publications. (2014). Radiant Cooling: A Case Study of Energy Savings. [Link]
9. PatSnap Eureka. (2025). Cooling Data Centers with Convection Currents: Cost Efficiency. [Link]
10. Boyd Corporation. (n.d.). Electric Vehicle Radiator Case Study. [Link]
